DSC PowerSeries PC1616 Ethernet Hardwired Security System (Powered by Connect24)

DSC PowerSeries PC1616 Ethernet Hardwired Security System (Powered by Connect24)
DSC PowerSeries PC1616 Ethernet Hardwired Security System (Powered by Connect24)
Item# PC1616-IP-KIT

Please Note: DSC PowerSeries PC1616 Phone/VoIP-Line Hardwired Security System has been discontinued without replacement.

▼ Compatible DSC Hardwired Security Sensors ▼

DSC PowerSeries PC1616 Kit Description:


This DSC PowerSeries PC1616 Connect24 internet kit is a feature-rich, hardwired security system that easily integrates with an array of compatible components to deliver an expandable (up to 32 total zones) business or home security solution. The PC1616 control panel comes out of the box with 6 hardwired on-board zones and it may be expanded to a total of 14 hardwired zones by using a PC5108 hardwired 8-zones expansion module. In addition, the PC1616 can accomodate up to 32 total wireless zones by adding an DSC wireless receiver (such as; RF5132-433 wireless receiver or RFK5501 combo keypad w/32-zone wireless receiver). With an DSC wireless receiver installed the PC1616 is compatible with the full line of DSC wireless security products. The PowerSeries PC1616 also gives the user more control, thereby enhancing the functional experience. The user can "Arm Away", "Arm Stay" or "Disarm" all partitions with just one operation. The PC1616 features up to 47 user codes, up to 8 keypads, and 2 partitions. With global arming and disarming, and scheduling auto arming and disarming, the DSC PC1616 panel is a preferred choice of installer's and DIYer's.

The new PowerSeries PC1616 control panel from DSC makes installation easy, simple and fast with label programming using the pre-loaded library. The PC1616 panel features template programming for new users and a programming interface that experts will be familiar with. With a library of over 250 commonly used names in English, French and Spanish, label programming is now a snap with the PowerSeries PC1616 v4.6 panel. DIYer's can now assign a unique 3-digit code to display a full descriptive label (e.g., code 190 displays "Window"), avoiding time and mistakes with more conventional keypad entry. For additional customization, other pertinent details can also be added, such as the zone or floor to make it easy for the owner to identify faults (e.g., "Bedroom Window"). The PowerSeries PC1616 also features an independent end-of-line (EOL) configuration that makes installation faster than ever before. Each hardwired zone can be independently matched to the devices EOL configuration, reducing the time required to get a common EOL configuration across all security devices. Likewise, wireless device enrollment can be enrolled quick and easily. With the wireless device enrollment process, DIYer's are not required to manually program serial numbers or wireless attributes. Instead, enrollment is completed by confirming the confirm Electronic Serial Numbers (ESN), zone numbers and zone type through a series of user friendly screens.

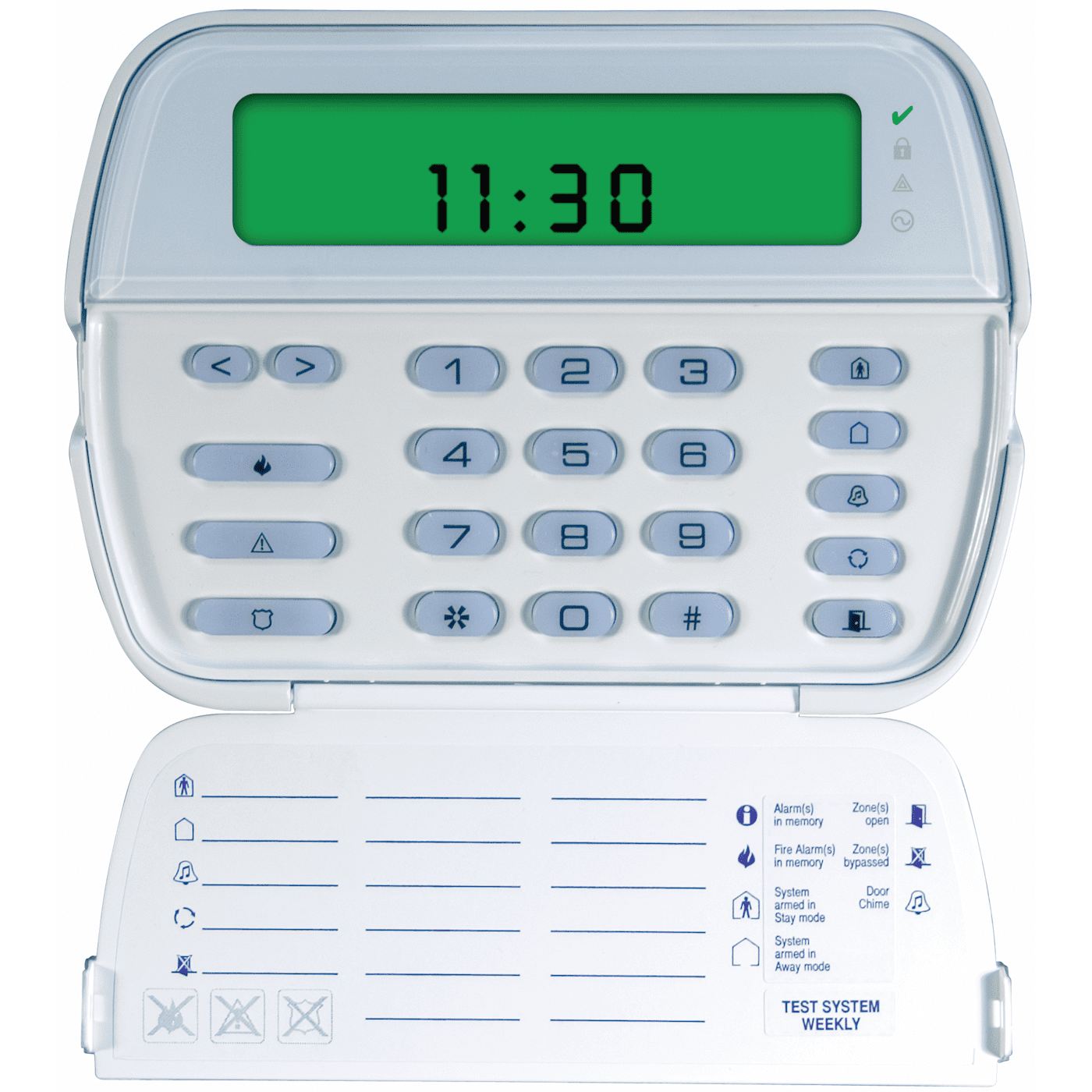

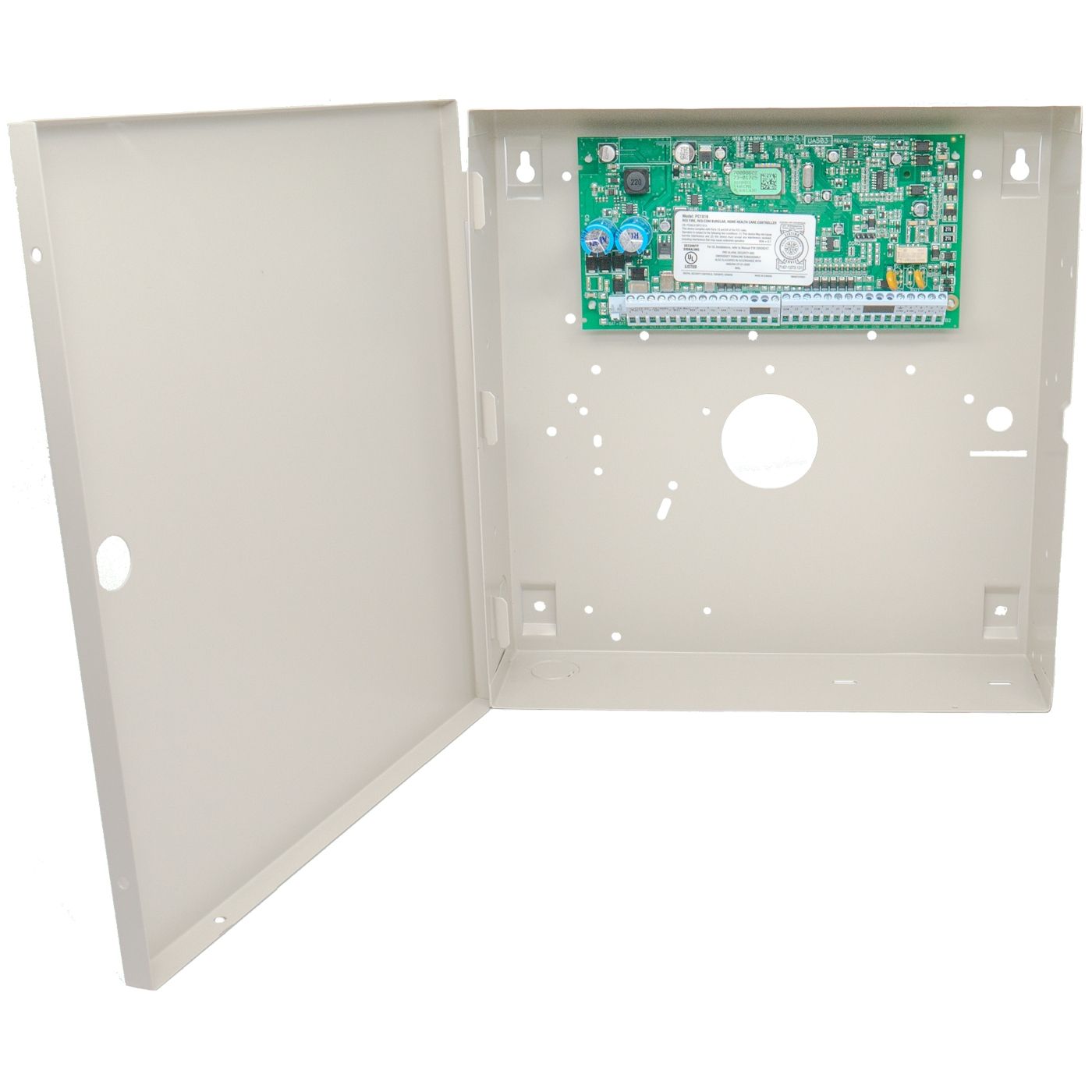

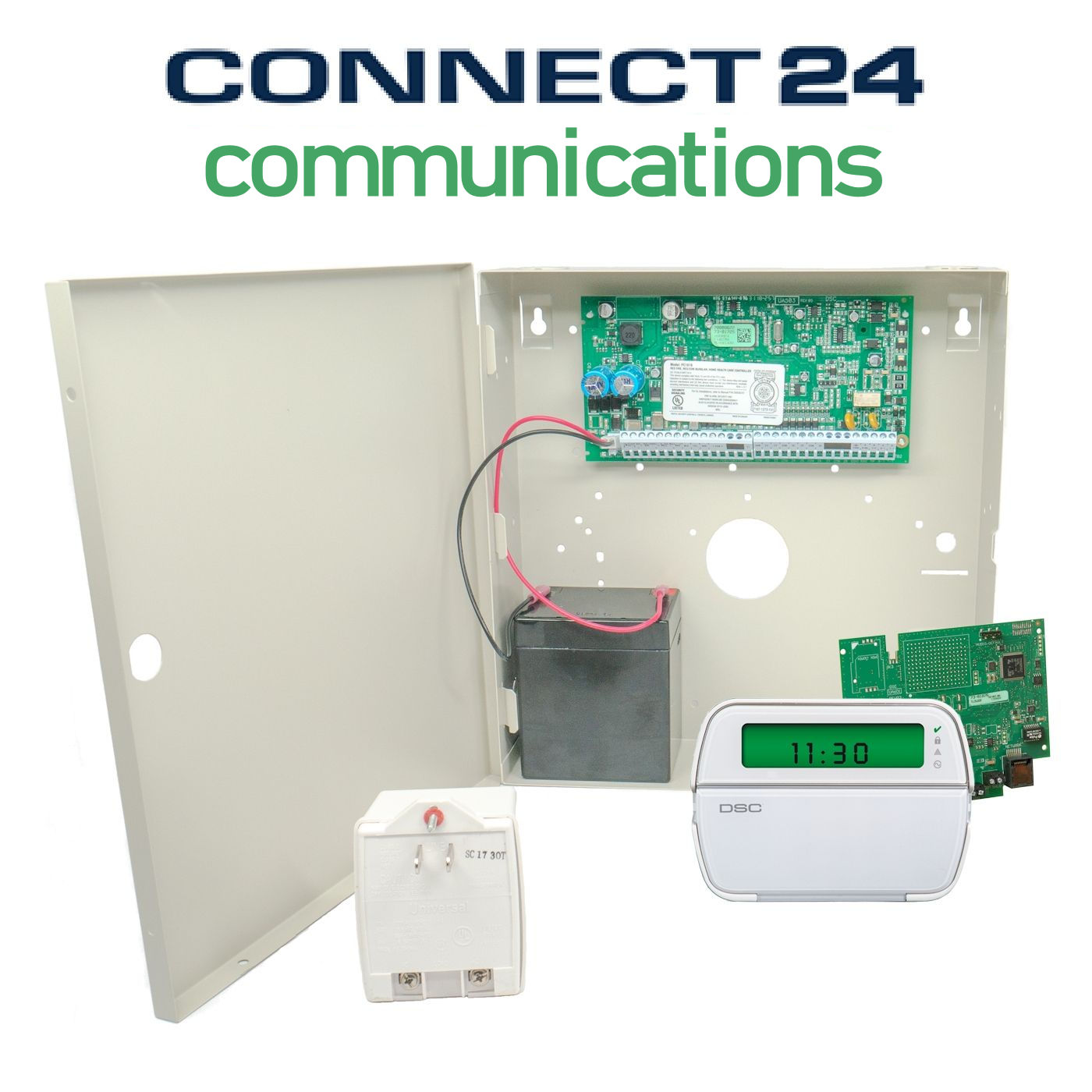

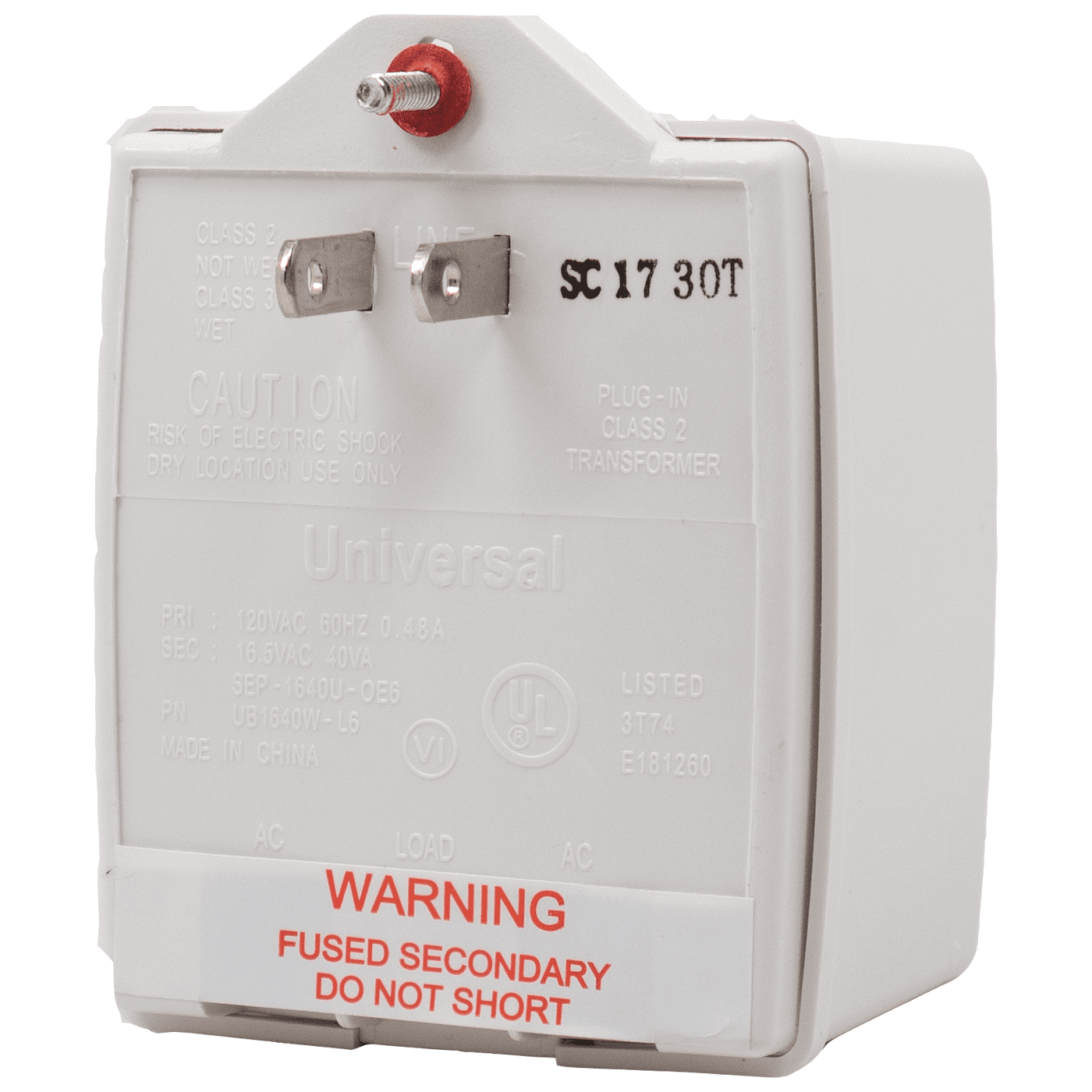

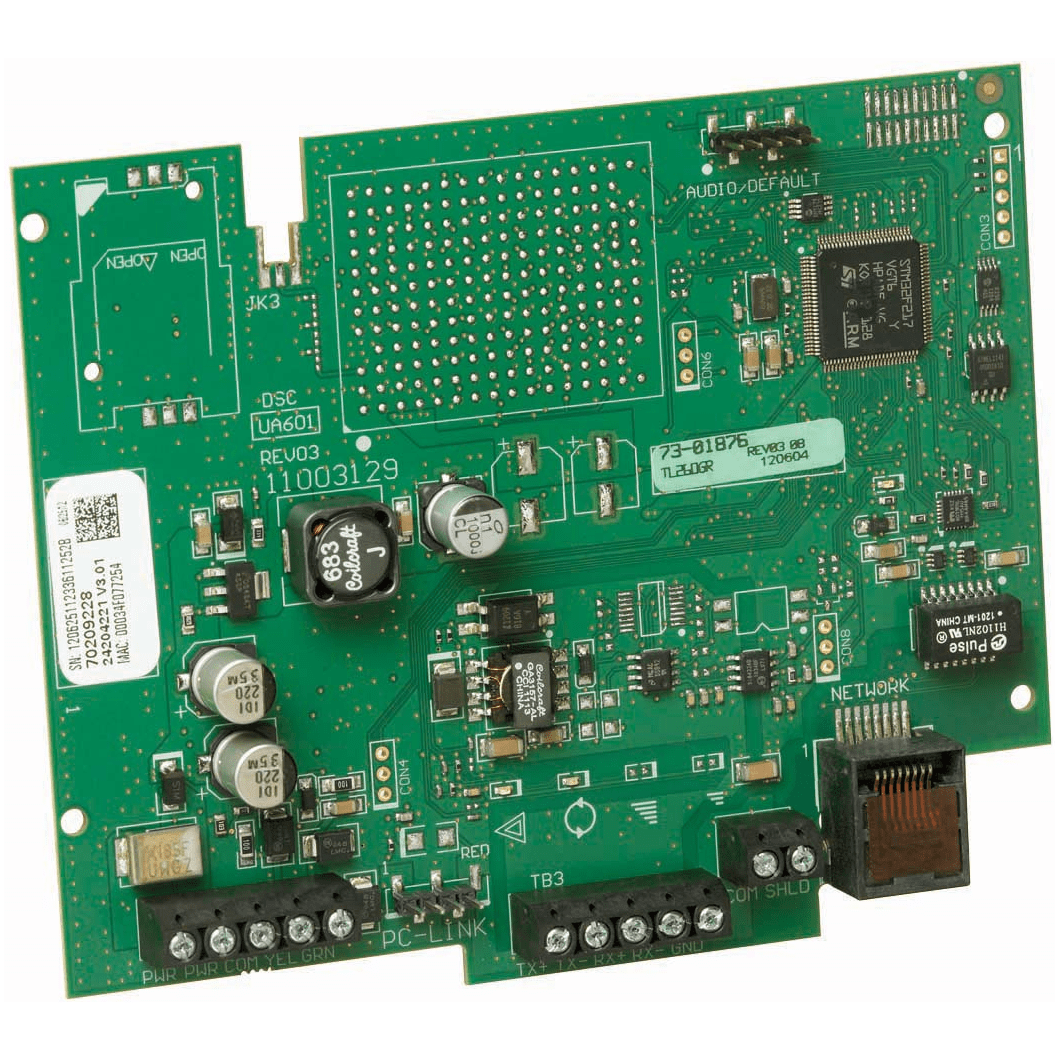

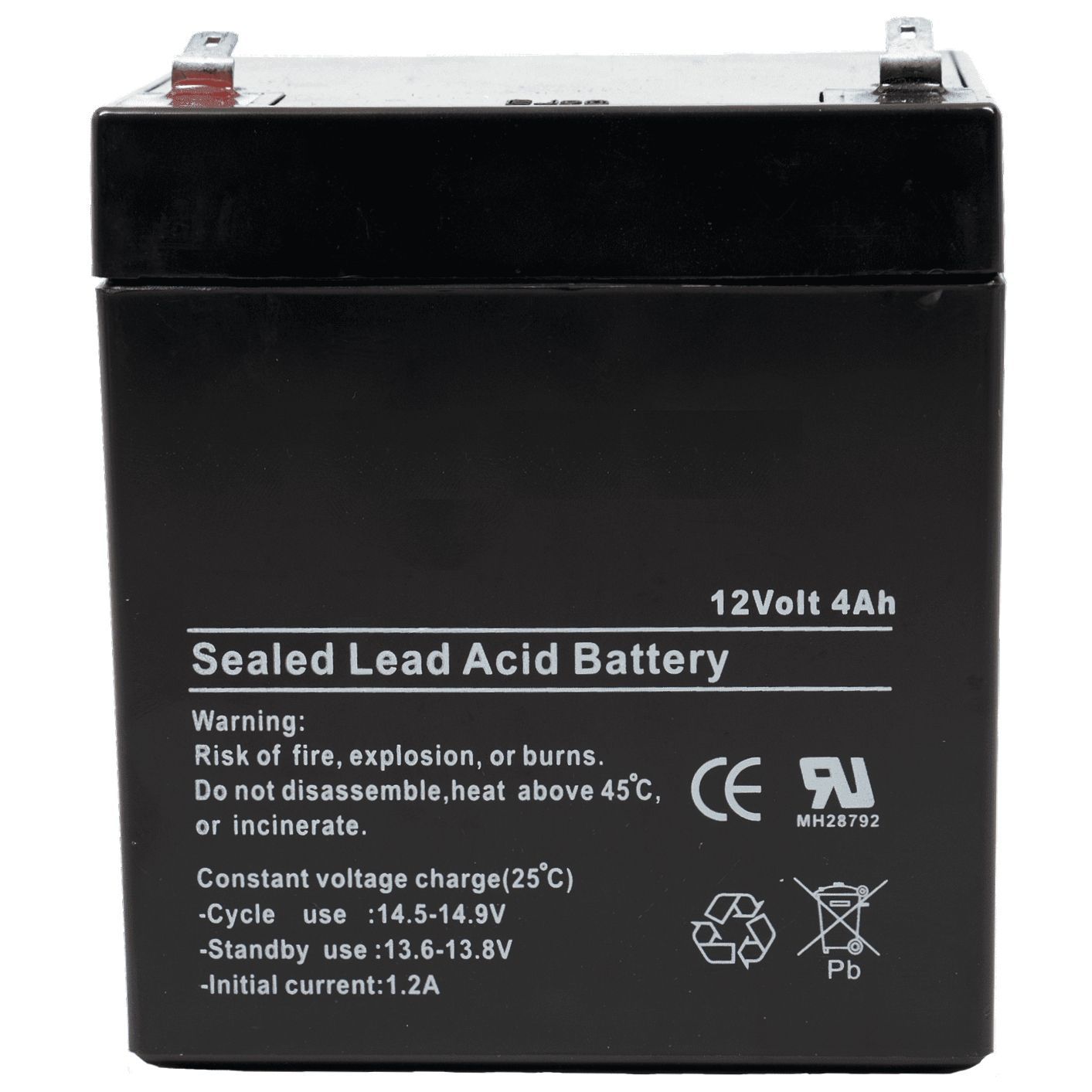

This PowerSeries PC1616 hardwired internet security system kit includes; hardwired control panel (PC1616NK), control panel battery (BAT1245), power transformer (PTD1640U), hardwired LCD picture-icon keypad (PK5501ENG) and a DSC internet alarm communicator (TL260R-NA). This PC1616 kit is equipped to send the alarm signals over your broadband internet network, to the GeoArm central monitoring station, using the included DSC TL260R-NA communicator.

Do-it-yourself (DIY) installations are an emerging new trend in the security industry. Being one of the pioneers in this industry, we are the perfect partner for any DIYer considering an installation of a new DSC PowerSeries security system. You can be confident that your DIY security system installation will be backed by a team of real security professionals and DSC's 1-year limited manufacturer's warranty. With 30 years of professional security installation experience, GeoArm has the technical know-how to make your DIY home security installation as easy and seamless as possible.

Intended Security Applications:

  • Homes
  • Townhomes
  • Apartments/Condos
  • Offices
  • Retail Spaces
  • Small Businesses
  • Warehouses
  • Convenience Stores
  • Gas Stations
  • Churches

DSC PowerSeries PC1616 Kit Specifications:


• 6 on-board zones
• Expandable to 16 hardwired zones
• Expandable to 32 wireless zones
• 2 PGM outputs; expandable to 14 (PC5204, PC5208)
• Connect up to 8 supervised keypads
• Supports wire free keypads with TR5164-433 transceiver
• Template programming
• 2 partitions
• 500-event buffer
• 48 user codes
• CP-01 compliant
