DSC PowerSeries PC1616 Internet Hybrid Security System

DSC PC1616 PowerSeries Internet Hybrid Security System
DSC PC1616 PowerSeries Internet Hybrid Security System
Item# PC1616-IPHYBRIDKIT
List Price: $489.16
Your Price: $326.11

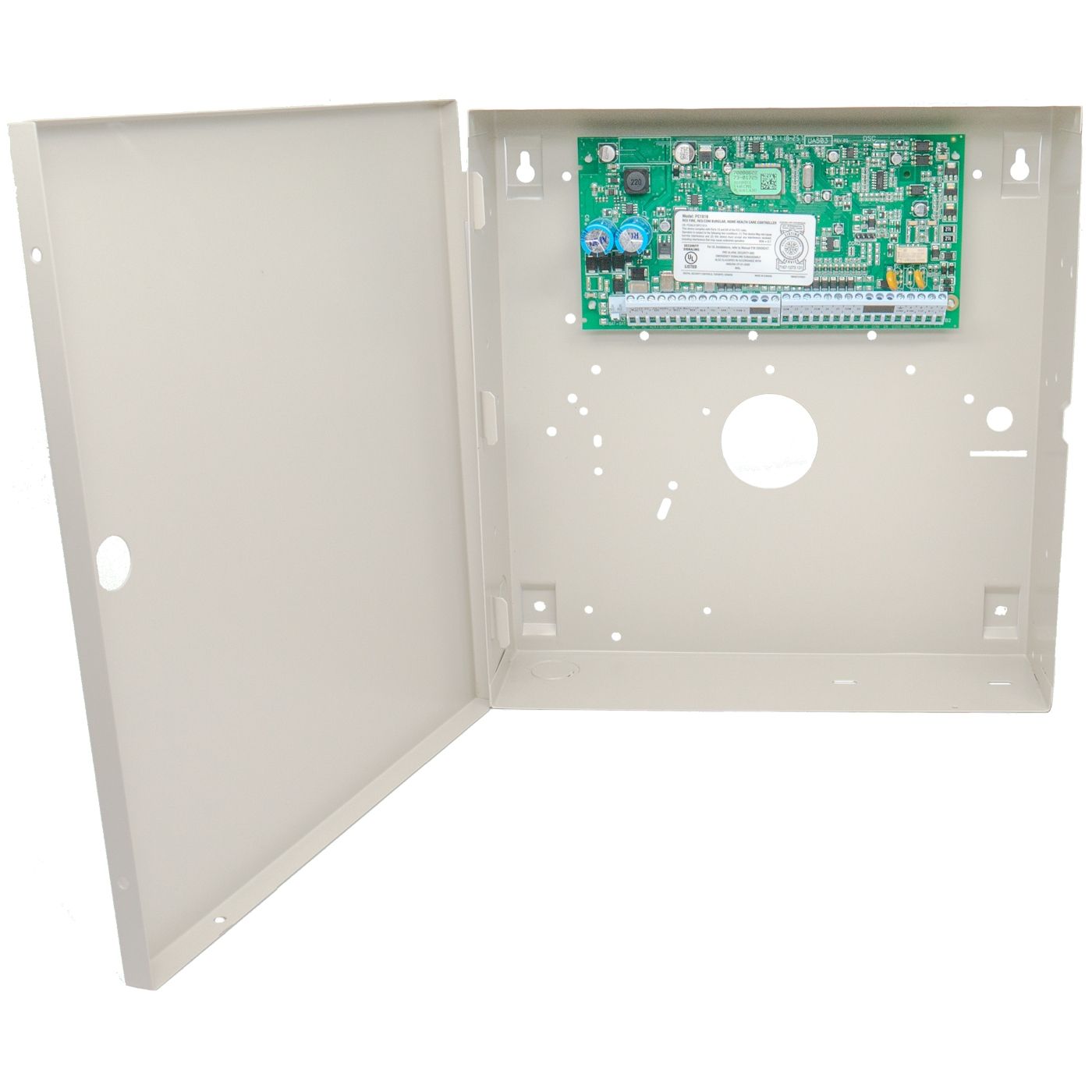

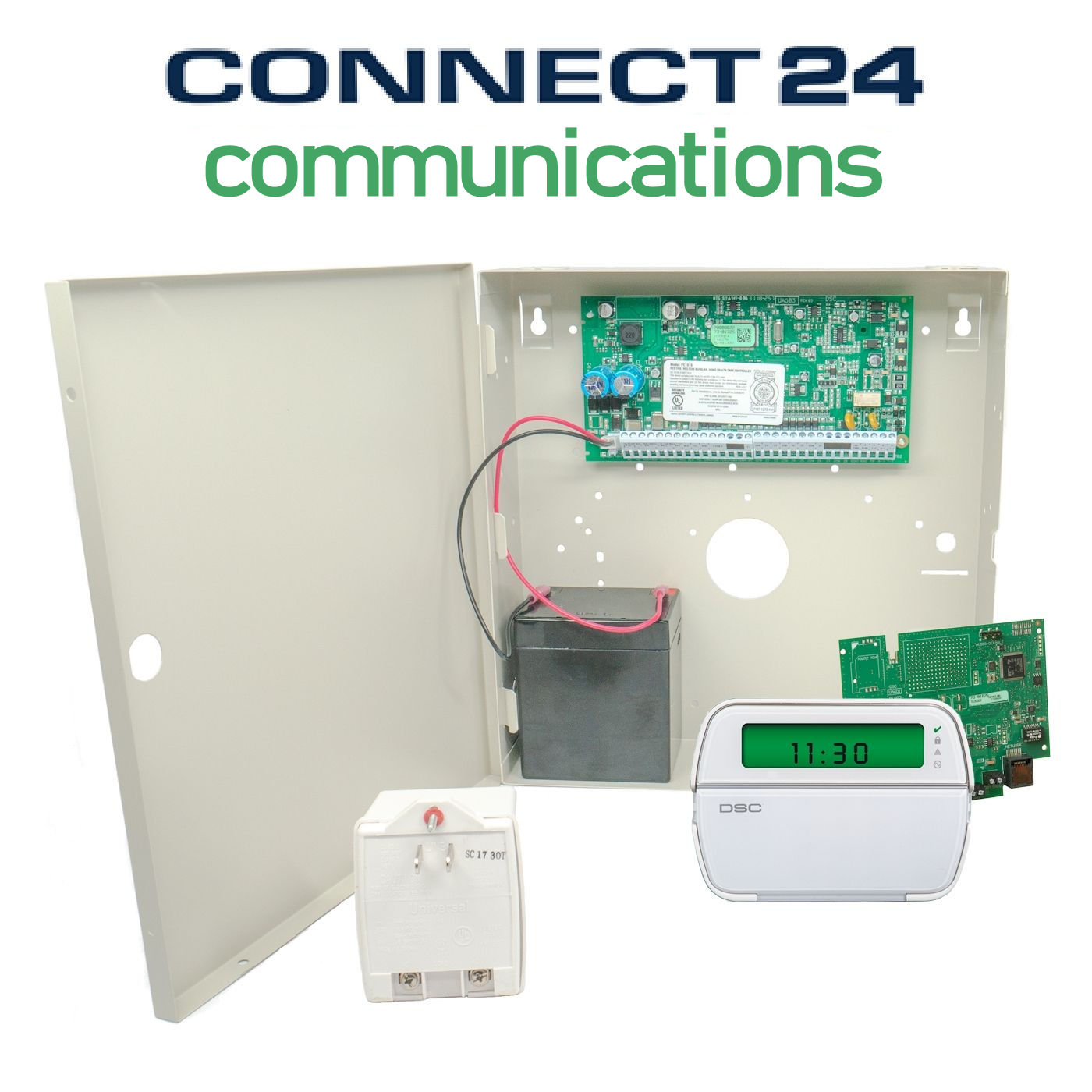

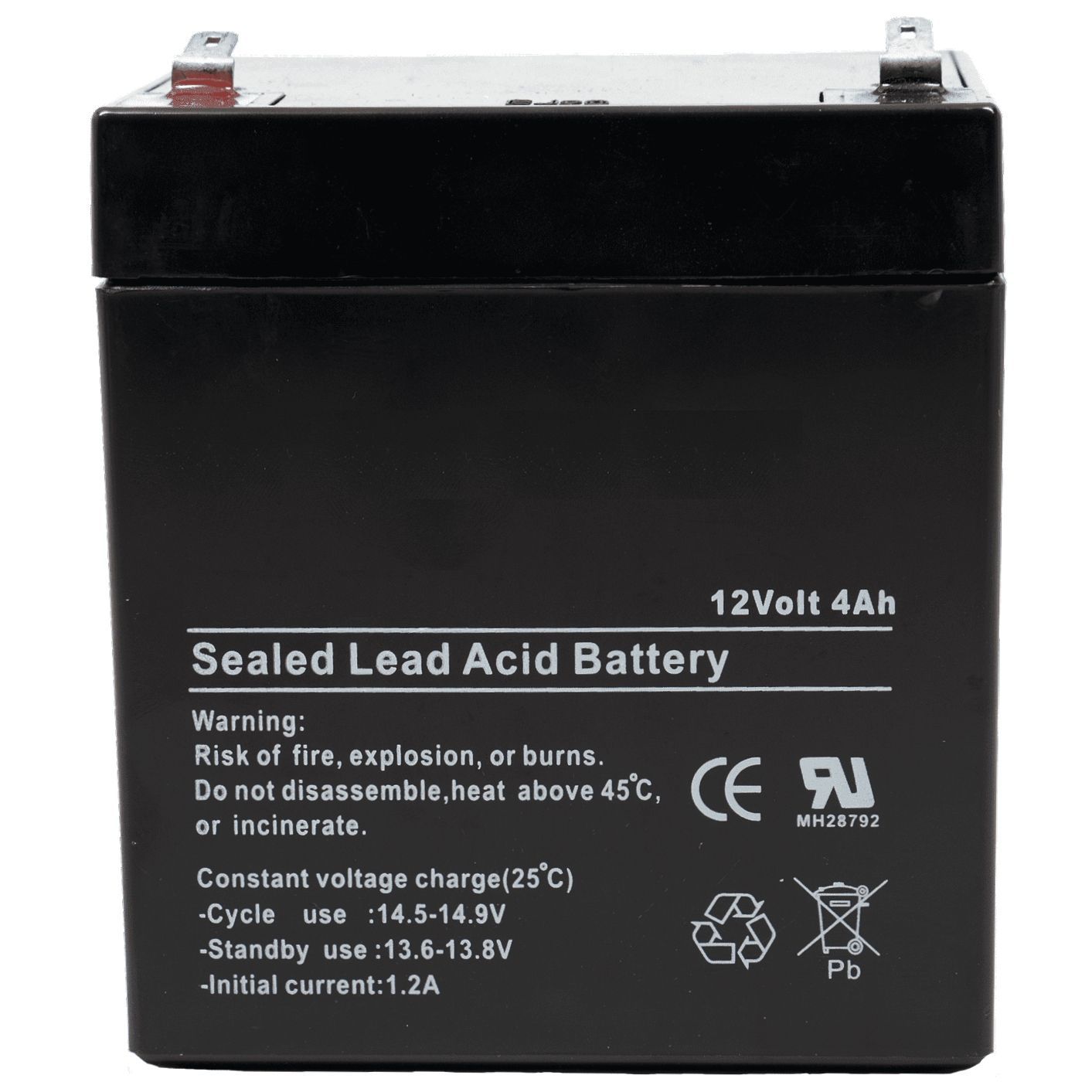

PC1616 Control Panel, Battery & Transformer:  Broadband Internet Alarm Communicator (TL260R):  Programming Keypad w/Wireless Receiver (RFK5501):  Wireless Door/Window Contact (WS4945):  Wired Motion Detector (LC-100PI):  Wired Alarm Siren (UPG80112):  Add Wired Non-Programming Keypad (PK5501):  Wireless Motion Detector (WS4904P):  Add Wired Door/Window Contact (945T):  Add Wired 8-Zone Expansion Module (PC5108):

DSC PC1616 Security System:


DSC is a recognized leader in the design and manufacturing of reliable, feature-rich intrusion security systems that easily integrate with an array of alarm communicators, verification modules and cabling solutions. From their clean unobtrusive look to their advanced technologies, DSC internet hybrid security systems are a favorite of both users and installers.

The new PowerSeries PC1616 internet hybrid security systems from DSC make installation easy, simple and fast. The PC1616 internet hybrid security system features template programming for new users and a programming interface that experts will be familiar with. The PowerSeries internet hybrid security systems also feature independent end-of-line (EOL) configuration that makes installation faster than ever before. Each hardwired zone can be independently matched to the devices EOL configuration, reducing the time required to get a common EOL configuration across all hardwired security devices.

The PowerSeries PC1616 also gives the user more control, thereby enhancing the functional experience. The user can 'Arm Away', 'Arm Stay' or 'Disarm' all partitions with just one operation. The PC1616 internet hybrid security system has been upgraded to support a maximum of (32) wireless zones with no additional equipment needed. Featuring additional user codes, global arming and disarming, DSC internet hybrid security systems are the preferred choice of installers.

DSC PowerSeries internet hybrid security systems have a proven reputation for providing the value and dependability that security professionals expect. The modular design of PowerSeries internet hybrid security systems provides both versatility and flexibility in any application, from small residential to medium-sized commercial. Packed with features, PowerSeries internet hybrid security systems are easy to install, easy to program and easy to use.

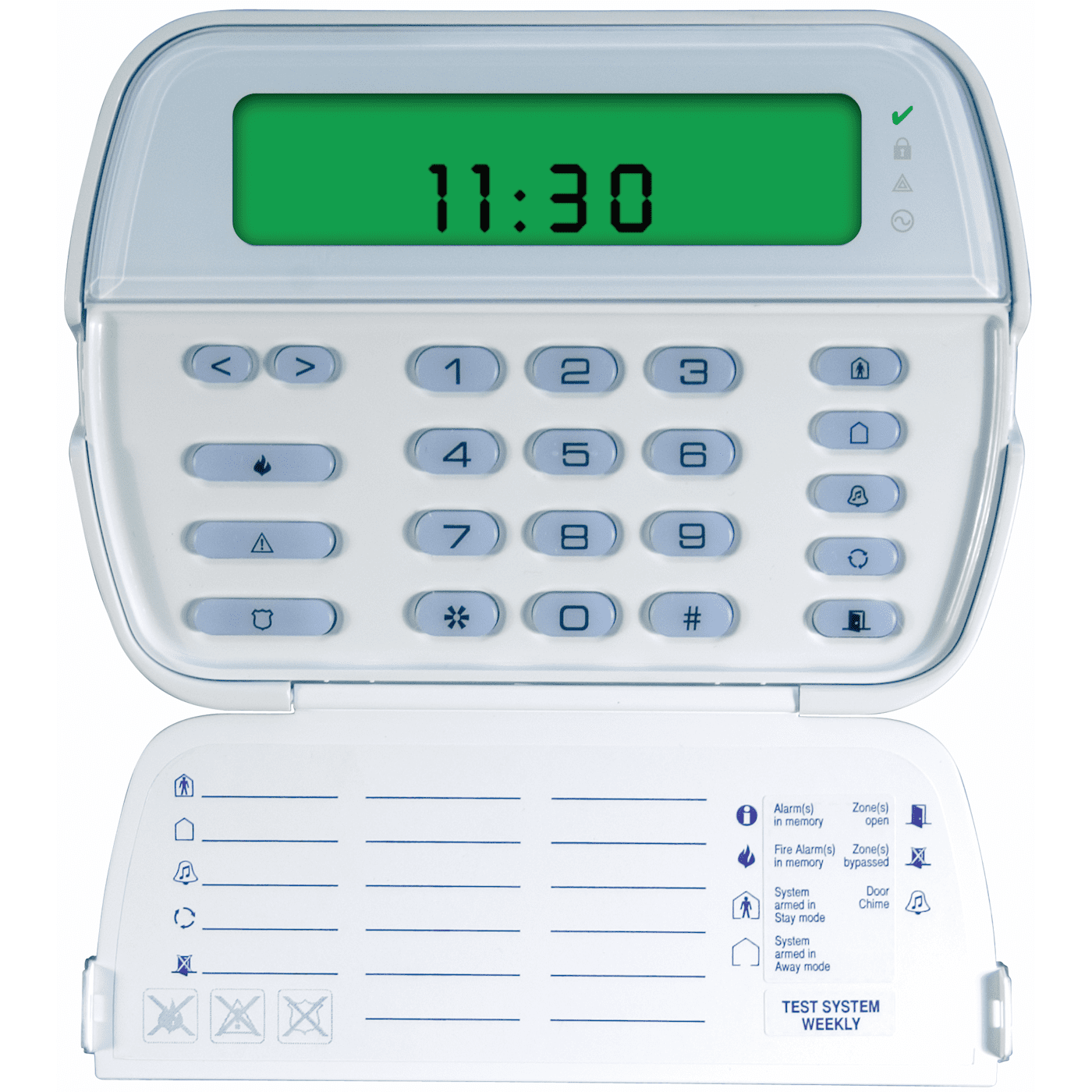

The PC1616 PowerSeries internet hybrid security system is backed by DSC's 1-year limited manufacturer's warranty and is upgraded with the RFK5501 PowerSeries keypad which has a built-in (32) zone wireless alarm receiver. This keypad upgrades the PC1616 security system into a hybrid security system that can handle both hardwired and wireless alarm zones. This particular PowerSeries hybrid security system has also been upgraded with a DSC TL260R PowerSeries internet alarm communicator. The PC1616 PowerSeries internet hybrid security system is compatible with the full line of DSC wireless security products.

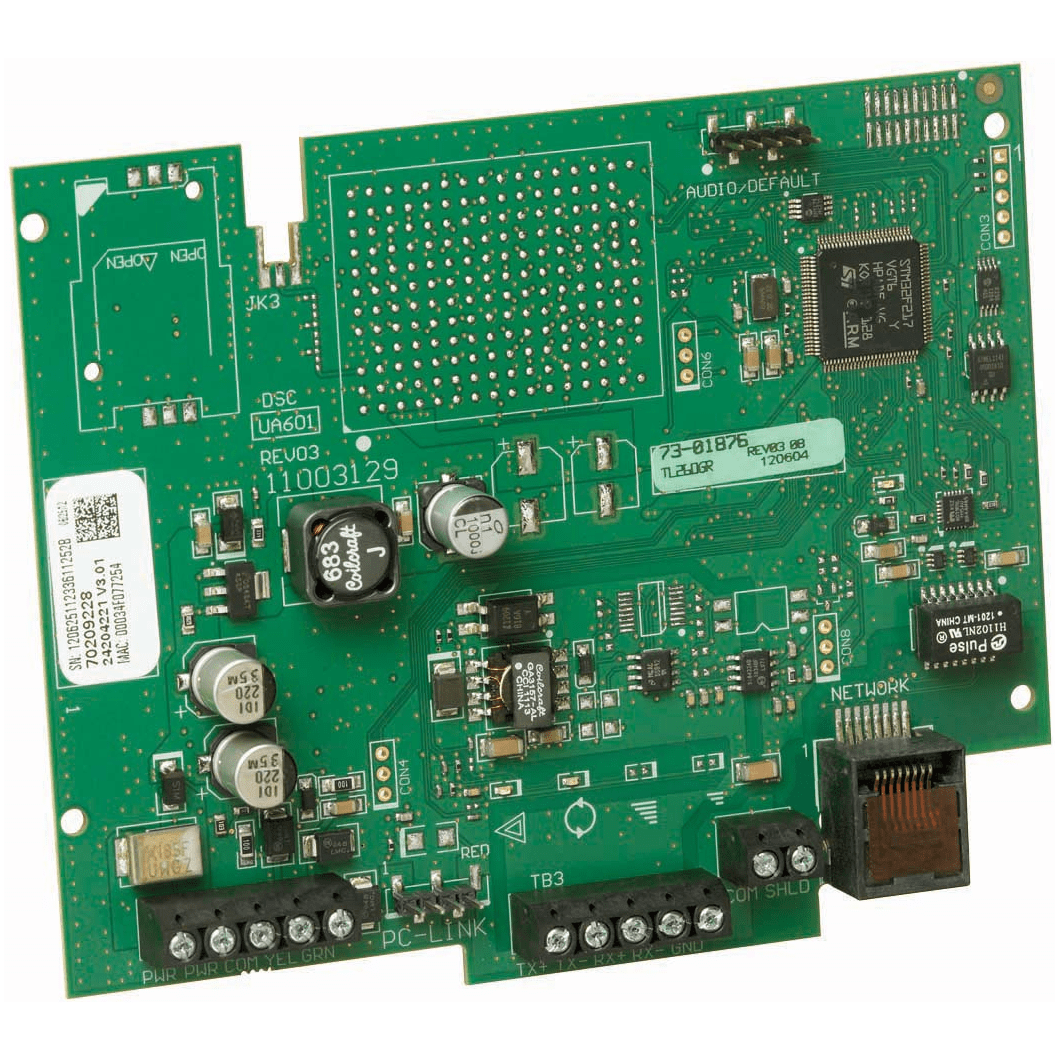

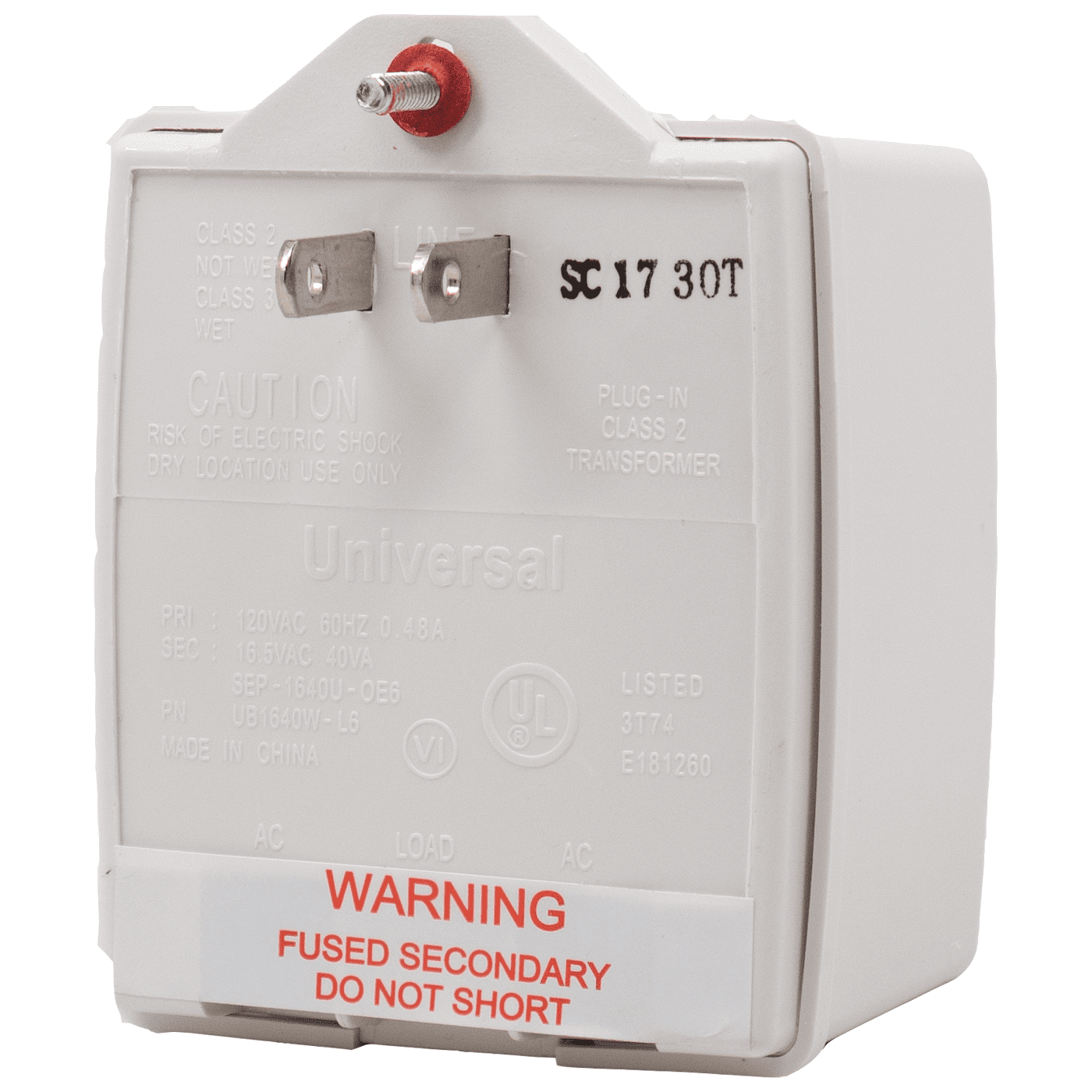

The DSC PC1616 PowerSeries internet hybrid security system comes equipped to send your alarm signals over the IP network. The TL260R internet alarm communicator does need to be hardwired to your broadband internet router with a CAT-5 Ethernet cable. Therefore, to complete your DIY home security installation, plug in the PC1616 transformer into a standard wall outlet and then connect the TL260 internet alarm communicator to your home or business router. When choosing your installation location, make sure you will be able to run the CAT-5 cable and that you have an open wall outlet nearby.

When designing your system, keep in mind that the DSC PC1616 PowerSeries internet hybrid security system supports up to (32) total zones with expansion modules but only supports (6) hardwired zones and (32) wireless zones without expansion. You should add DSC wired 8-zone expansion modules if you want to add more than (6) hardwired zones to your DSC PC1616 internet hybrid security system.

If you are interested in interative remote alarm monitoring services, than a DSC-compatible Telular HomeControl™ alarm communicator is required. With HomeControl™ you may arm or disarm your DSC PC1616 security system remotely, receive email/text message alerts, and also set up custom rules for monitoring your property. To upgrade your system for HomeControl over the cellular towers, you will need to add the 3G2060R-TEL cellular alarm communicator. In addition to adding remote capabilities, by adding the Telular 3G2060R-TEL, this would make the installation of the PC1616 security system easier as you wouldn't have to run an Ethernet cable to your TL260R broadband internet alarm communicator. The cellular alarm communicator sends your alarm signals over the wireless cellular 3G network securely to the central station.

Additionally, you may also consider adding the TL2603GR-TEL dual-path alarm communicator which would provide redundant method of sending the alarm signals and still allow for interactive monitoring. With the TL2603GR-TEL in place, the broadband internet alarm monitoring path will be the primary communication method, and if down, it is backed up by the cellular alarm monitoring path. However, please keep in mind that with the TL2603GR-TEL dual-path communicator you will still need to run an Ethernet cable from your router to the device.

Do-it-yourself (DIY) installations are an emerging new trend in the security industry. Being one of the pioneers in this industry, we are the perfect partner for any DIYer considering an installation of a new DSC PowerSeries security system. With 30 years of professional security installation experience, GEOARM has the technical know-how to make your DIY home security installation as easy and seamless as possible. You can be confident that your DIY security system installation will be backed by a team of real security professionals.

Intended Security Applications:

  • Homes
  • Townhomes
  • Apartments/Condos
  • Offices
  • Retail Spaces
  • Small Businesses
  • Warehouses
  • Convenience Stores
  • Gas Stations
  • Churches

DSC PC1616 Product Documents:


Data Sheet for DSC PC1616 PowerSeries Internet Hybrid Security System
Quick Installation Guide for DSC PC1616 PowerSeries Internet Hybrid Security System
Installation/Setup Guide for DSC PC1616 PowerSeries Internet Hybrid Security System
Programming Worksheet for DSC PC1616 PowerSeries Internet Hybrid Security System
Reference Manual for DSC PC1616 PowerSeries Security Systems
Security Products for DSC PowerSeries Security Systems
Sales Brochure for DSC PowerSeries Alarm Keypads
Data Sheet for DSC 64-Zone Picture ICON Alarm Keypad & Integrated 32-Zone Wireless Receiver (RFK5501)
Installation Guide for DSC 64-Zone Picture ICON Alarm Keypad & Integrated 32-Zone Wireless Receiver (RFK5501)
Data Sheet for DSC's PowerSeries Internet Alarm Communicator (TL260)
Installation Guide for DSC's PowerSeries Internet Alarm Communicator (TL260)

DSC PC1616 Product Specifications:


• 6 on-board zones
• Expandable to 16 hardwired zones
• Expandable to 32 wireless zones
• 2 PGM outputs; expandable to 14 (PC5204, PC5208)
• Connect up to 8 supervised keypads
• Supports wire free keypads with TR5164-433 transceiver
• Template programming
• 2 partitions
• 500-event buffer
• 48 user codes
• CP-01 compliant
