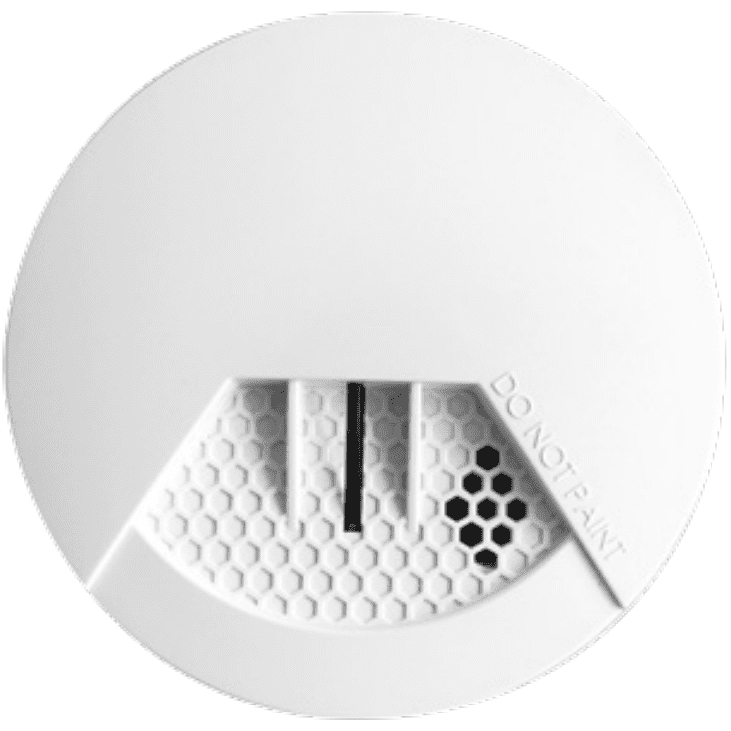

The Videofied ISD601 Smoke Detector is a UL-rated, residential-grade wireless smoke sensor that is compatible W-Series Control Panels.
The ISD601 detector is embedded with a smoke detection module, a buzzer and a radio module. Install the detector in the middle of the zone to protect. Installing the detector too close from a combustion source (kitchen with few windows or poorly ventilated, garage, furnace, hot water heaters, space heaters, etc.) or close to a humidity source (bathroom) can trigger false alarms. If the site has several floors, install at least a smoke detector on every floor.
The ISD601 detector is powered by a 3V Duracell CR123A Lithium battery for a two year battery life (on average). When the ISD smoke detector triggers, it generates a sound alarm and the information "Smoke Detection" is sent to the monitoring station through the alarm panel.
The ISD601 Indicator lights are as follows; Yellow blink with 3 beeps (Malfunction), Continuous yellow blink (Low Battery), Red blink once every 334 seconds (Normal Operation), Red blink once every 10.7 seconds (Reduced sensitivity operation during 10 minutes), fixed red light with 3 loud beeps (Alarm)
Push button recording
Wireless interactive technology
Optical detection of visible particles
Buzzer with 85 dB output level at 10 ft for up to 3 minutes in alarm mode
Supervised: transmits a check-in/status signal to the panel every 8 minutes indicating unique identification code along with the current detection sensor state, tamper condition, serial number, manufacture date, software revision, and battery status
CR123A Lithium battery - 4 years battery life (depending on use)
