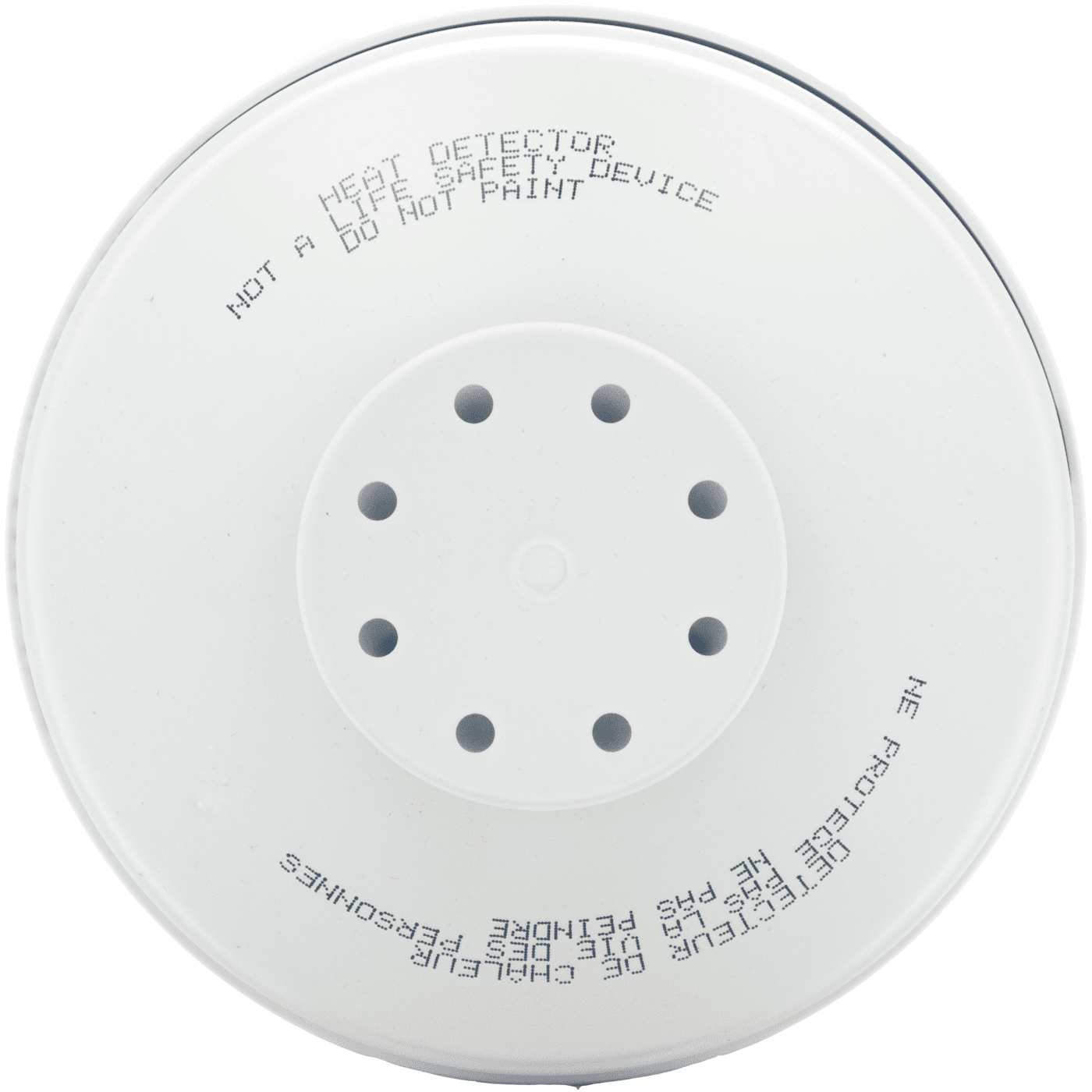

5809 - Honeywell Wireless Rate-of-Rise & Fixed-Temperature Heat Detector

5809 - Honeywell Wireless Heat Detector
5809 - Honeywell Wireless Heat Detector
Item# 5809
List Price: $83.66
Your Price: $55.78

Honeywell 5809 Product Description:

The Honeywell 5809 is a wireless fixed heat and rate-of-rise temperature sensors offer expanded fire detection and installation flexibility. They are ideal for hard-to-wire locations and applications that require more than smoke detection. This is a fast and easy install with no wires to run. The 5809 Series combines both rate-of-rise and fixed temperature sensors. Fires typically cause a rapid rise in temperature in the surrounding area. The 5809's rate-of-rise thermostat senses the rise in temperature and signals an alarm if the increase is 15°F (8°C)or more per minute. With a built-in fixed temperature sensor, it will also signal an alarm if the environmental temperature rises above 135°F (57°C). The 5809 is UL Listed (UL 521) and CSFM approved for commercial and residential applications.

The 5809 includes a tamper switch. If removed from its mounting base, a trouble signal is sent to the control panel. It is not recommended to install at a site where the ambient temperature exceeds 100°F (38°C) and is designed for indoor use only. If the fixed temperature sensor activates, the detector must be replaced. When the battery voltage drops below a threshold, a low battery signal is sent to the control panel. Remember, you will need to replace the battery when the system reports a low battery condition.

The maximum spacing recommended is 50 feet x 50 feet and UL recommends 30 feet x 30 feet spacing. Refer to NFPA 72 for application requirements. Also keep in mind, the 5809 will be permanently damaged if stored, shipped, or installed in environments where the temperature exceeds 100°F (38°C) and must be replaced. Heat detectors should be used for property protection. Reliance should not be placed soley on heat detectors for life safety. When life safety is involved, smoke detectors MUST also be used. Detectors MUST NOT be painted. Avoid mounting the detector near heat generating devices (e.g. ovens, heat vents, furnaces, boilers).

Product Features:
  • Contains a built-in transmitter which can send alarm, supervisory and battery condition messages to the system's receiver/control unit
  • Powered by a three-volt lithium battery. If the battery voltage gets too low, the 5809 sends a low battery signal to the control panel
  • Trips at 135°F or when the temperature rises more than 15°per minute
  • Mounts on ceiling or wall for maximum installation flexibility
  • Combines both rate-of-rise and fixed temperature sensors
  • Features a tamper switch, which causes a trouble signal to be sent to the control if the unit is removed from the mounting base
  • Includes 3V lithium battery
  • UL 521 commercial/residential applications
  • CSFM commercial/residential applications

Honeywell 5809 Product Specifications:

  • Dimensions: 4.4" Diameter, 2.2" Deep
  • Wall Mounting: Mount the detector 4" to 6" from the ceiling
  • Ceiling Mounting: Mount the detector at least 4" from any wall. Make sure the normal ceiling temperature will not exceed 100°F (37.8°C)
  • Case Color: White
  • Operating Temperature: 40°F to 140°F (6°C to 60°C)
  • Rate-of-rise Temperature: 15°F (8°C) increase per minute (NOTE: Rate-ofrise sensor (5809 only) does not operate above 38°C)
  • Maximum spacing: 50 ft x 50 ft UL, 30 ft x 30 ft FM (refer to National Fire Alarm Code Standard NFPA 72 for application requirements)
  • Power Source: One 3V CR123A lithium Battery
  • Replacement Batteries: Duracell DL123A, Panasonic CR123A, Sanyo CR123A, Varta CR123A
  • Fixed Temperature Heat Sensor: 135°F Fixed (57°C)
  • Agency Listings: UL 521 Listed for Commercial (when using 5881EH Receiver) or Residential applications

Honeywell 5809 Compatible:

• 5882H
• XL20
• OMNI624
• DESTINY-4100
• L5100
• L5100-SIA
• L7000
• L5200
• L5200-CN
• L7000-CN
• L7000LA
• 6152RF
• 6162RF
• OMNI408
• 5800
• L5210
• L5210-CN
• L5210LA
• FA1670C-9
• FA1700C-9
• FA245RF
• FA270RF
• FA570RF
• FA210RF
• FA260RF
• 6150RF
• 6150RFFR
• 5800RP
• 5881ENH
• 5881ENHC
• 5881ENL
• 5881ENM
• 6160RF
• 5881H
• 5881L
• 5881M
• 5883H
• 6128RF
• DESTINY-6100
• L3000-SP
• L5000
• L5000-CN
• L5000-SIA
• L3000
• L3000-CN
• L3000-FR
• L3000-SIA
• OMNI848
• V128FBP-9
• V128FBPN
• V250FBP-9
