959 - Honeywell XTP 2-Gap Overhead Door L-Bracket

959 - Honeywell XTP 2-Gap Overhead Door L-Bracket
959 - Honeywell XTP 2-Gap Overhead Door L-Bracket
Item# 959
List Price: $24.34
Your Price: $16.23

Honeywell 959 Product Description:

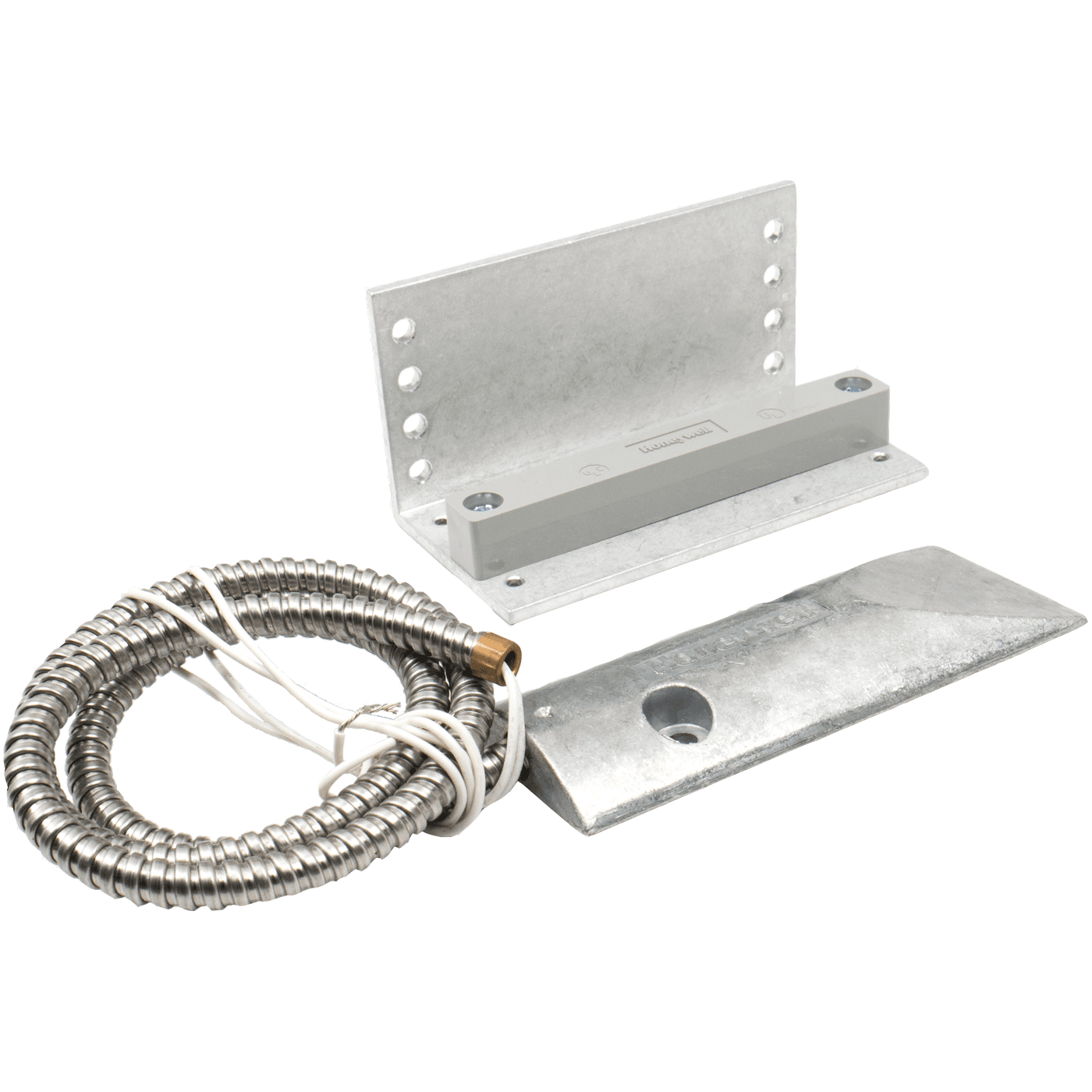

The Honeywell 959 is an addresssable alarm contact designed for overhead door applications. The 959 is made out of a rugged aluminum housing and has an adjustable L-bracket type magnet.

Product Features:
  • XTP contacts withstands surges up to 2400VDC
  • The standard for OHD contact applications
  • Standard gap - Up to 2" (51mm)
  • Adjustable magnet with L bracket
  • Exceeds UL transient test withstanding surges up to 2400 Volts
  • Backed by Honeywell's 2-year limited manufacturer's warranty

Honeywell 959 Product Specifications:


  • Dimensions: 4.25" L x 1.70" W x 0.45"H
  • Color: White
  • Switch Type: Form A (SPST) Reed
  • Contact Rating: 100ma @ 28VDC
  • Honeywell Exclusive: Patent polling loop technology

Honeywell 959 Compatible:


• VISTA-20PI
• 4140XMPT2
• VISTA-20PUL
• FA148CPSIA
• FA168CPSSIA
• 4140XMP
• FA1220CV
• VISTA-15PSIA
• VISTA-20P
• VISTA-20PS
• VISTA-20PSIA
• VISTA-20SE
• VISTA-20SEUL
• VISTA-21IPSIA
• VISTA-250BP
• VISTA-250BPE
• VISTA-40
• VISTA-48LA
• VISTA-50EX
• VISTA-50P
• VISTA-100
• VISTA-128B
• VISTA-128BP
• VISTA-128FB
• VISTA-128FBP
• 5140XM
• FA1220C
