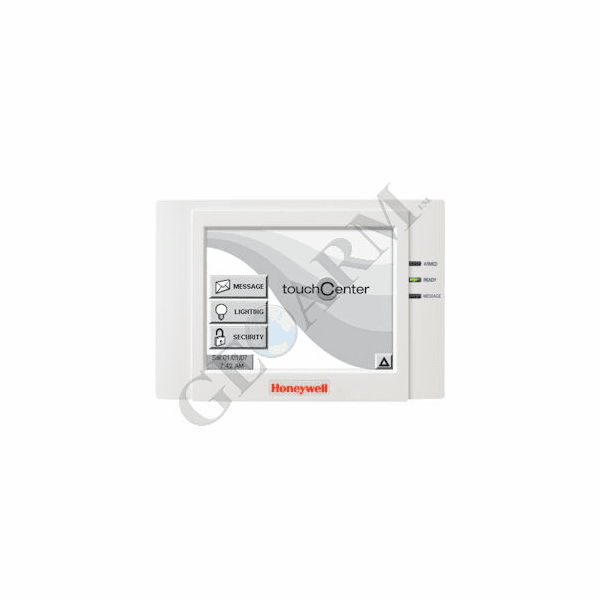

6271V - Honeywell Talking Black & White Graphic Touchscreen Alarm Keypad

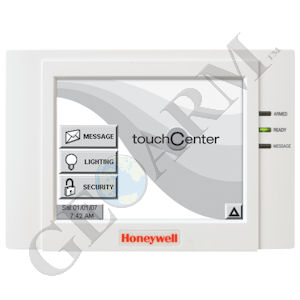

6271V - Honeywell Black & White Graphic Touchscreen Keypad w/Voice

Honeywell 6271V Alarm Keypad:


The Honeywell 6271V TouchCenter voice keypad has been discontinued and replaced by the TUXWIFI, 6280S, or 6280W model number.

With its large, intuitive touchscreen display that can be customized for your needs, Honeywell's 6271V black and white graphical touchscreen keypad is simple to use. The 6271V uses menu-driven prompts and icons that guide you every step of the way. Voice annunciation of system status and zone information adds an extra level of protection and peace of mind. The convenient message center keeps family members in touch be letting them record and playback messages for one another.

Product Features:
  • External MMC card slot for fast homescreen customization or software upgrades
  • Large, black and white touchscreen display
  • Intuitive touchscreen display with icons and menu driven prompts
  • Voice annunciation of zone number and type of emergency during alarm situations and system status during normal operation
  • Family message center allows you to record and playback messages for family members
  • Over two minutes of recordable messages time
  • Blinking LED indicates a message has been left
  • Entry/exit delay countdown displayed
  • Authorized end-user can add or delete user codes
  • View entire zone list with status of each zone
  • End-user can quickly bypass zones from zone list
  • Access system event log to view when the system was used and who used it
  • Track when workers and temporary guests use the system
  • Keep tabs on family members (e.g. checking if a child has armed the system upon returning home from school)
  • Utilize the TouchCenter as an effective business management tool (e.g. viewing openings and closings)
  • Emulation of standard 2x16 alphanumeric LCD keypad display
  • Diagnostics allows testing of LCD display, audio and LED indicators


Product Specifications:
  • Dimensions: 7-1/4" W x 5" H x 1-3/8" D
  • Operating Current: Standby - 180mA, Activated - 280mA
  • Wiring: Black (Ground), Red (+12VDC Aux Power), Green ("Data in" to control panel), Yellow ("Data-out" from control panel)

Honeywell 6271V Compatible:


• FA168C-GP
• V128FBP-9
• VISTA-15PCN
• V128BPEN
• V128FBPN
• VISTA-15P
• VISTA-15PSIA
• VISTA-20P
• VISTA-20PCN
• VISTA-20PSIA
• VISTA-21IP
• VISTA-21IPSIA
• VISTA-250BP
• VISTA-250BPE
• VISTA-250FBP
• VISTA-48LA
• V250FBP-9
• VISTA-128BP
• VISTA-128BPE
• VISTA-128FBP
• VISTA-128SIA
• VISTA-128SIAE
• VISTA-20PUL
• FA1660C
• FA168CPS
• FA1660CE
• FA1670C-9
• FA148CP
• FA148CPSIA
• FA168CPS-CN
• FA148CP-CN
• FA1700C
• FA1700C-9
• FA168CPSSIA
