5800ZBRIDGE - Energy Management Device for Honeywell LYNX and VISTA Control Panels

5800ZBRIDGE - Energy Management Device for Honeywell Security Systems
5800ZBRIDGE - Energy Management Device for Honeywell Security Systems
Item# 5800ZBRIDGE
List Price: $65.55
Your Price: $43.70

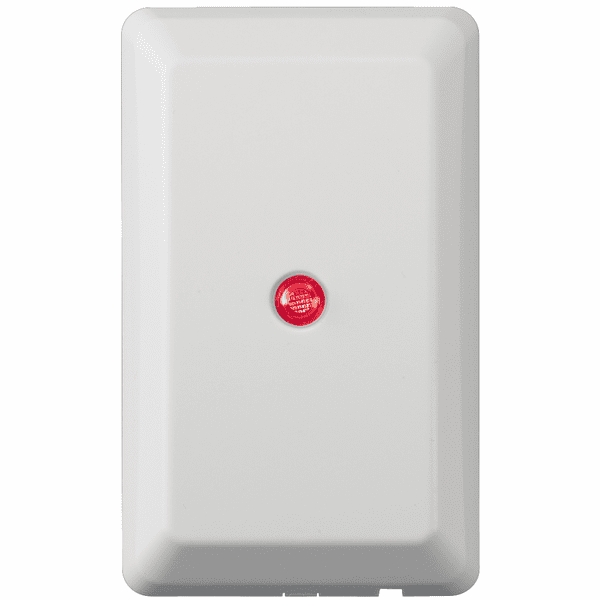

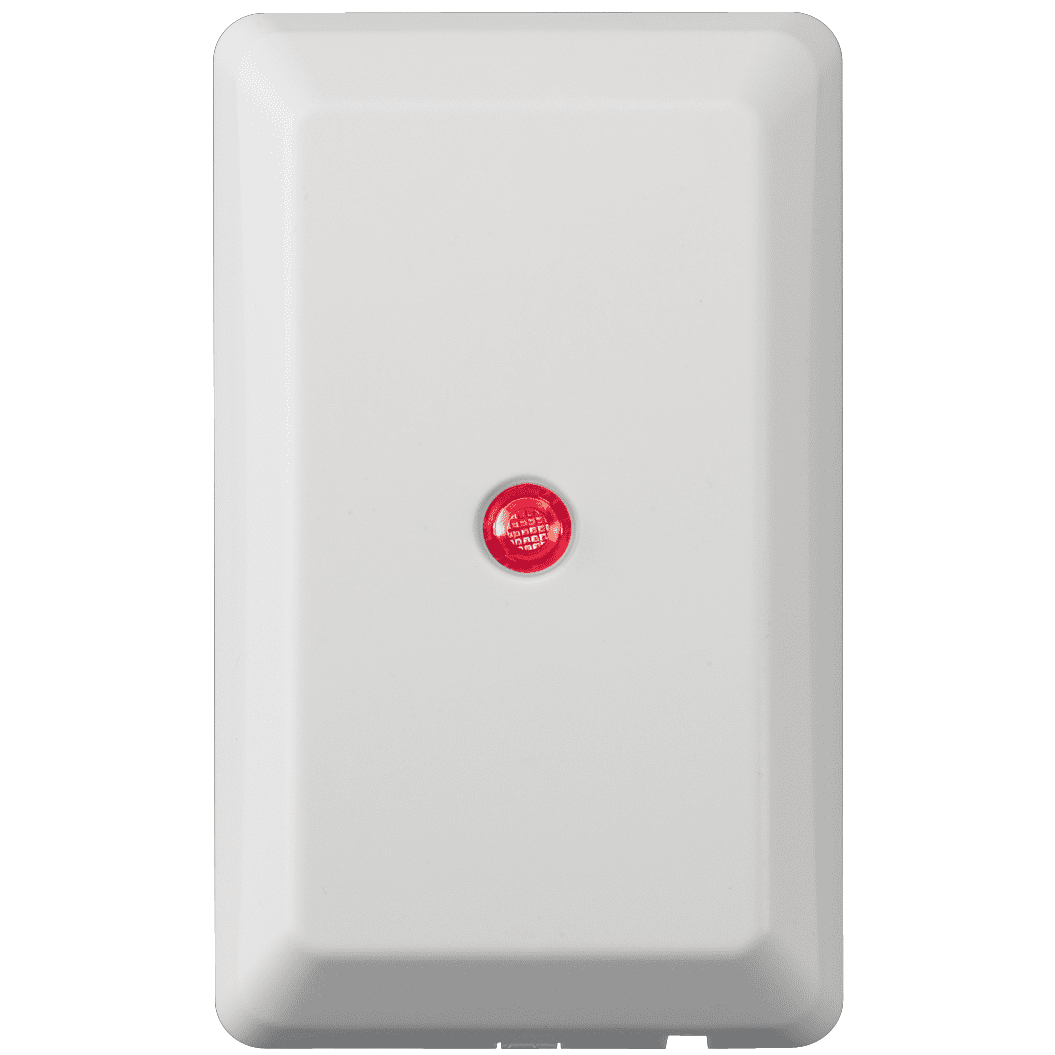

Honeywell 5800ZBRIDGE Product Description:


The Honeywell 5800ZBRIDGE is an intelligent energy management module, end-users no longer have to remember to adjust their thermostats or lights when they come and go. It automatically sets back thermostats and turns lights on or off whenever security systems are armed away or disarmed saving money and conserving resources every day. Part of Honeywell's 5800-Series Wireless family, the easy-to-install 5800ZBRIDGE lets security dealers offer intelligent, cost-effective energy management on every sale. The 5800ZBRIDGE provides an interface between Z-Wave Modules and Honeywell LYNX security systems and VISTA control panels that are equipped with RF keypads or a Honeywell 5883H receiver.

When mounting the 5800ZBRIDGE, please remember to determine the optimum mounting location taking care to avoid damp locations. To maximize the transmitter’s range, avoid mounting the device to metal objects, if possible. The module should be located a maximum of 6 feet from an unswitched 120VAC outlet.

Product Features:
  • Automatically sets back Z-Wave® enabled thermostats when security system is armed away
  • Supports up to four (4) Z-Wave enabled thermostats and four (4) Z-Wave lights
  • Sends run command to Z-Wave enabled thermostats when security system is disarmed
  • Turns lights off when security system is armed away
  • Turns lights on when security system is disarmed
  • Optimizes convenience, efficiency and control
  • Reduces energy usage
  • Tri-color LED status indicator: Green - Ready, Flashing Red - Armed Away, Solid Red: Armed Stay, Orange: Alarm

Honeywell 5800ZBRIDGE Product Specifications:


  • Dimensions: 4.5" H x 2.75" W x 0.25" D (114.3 mm x 69.85 mm x 6.35 mm)
  • Electrical Power Supply: 12VDC
  • Operating Current: 29-31mA
  • Operating Temperature: 14°F to 122°F (-10°C to 50°C)
  • Relative Humidity: Up to 90&per; non-condensing
  • Frequency (from 5800 Series RF House ID Code receiver): 345 MHz
  • Frequency (from Z-Wave controller): 908.42 MHz
  • Supports: Any combination of up to four Z-Wave enabled thermostats or Z-Wave enabled light devices
  • Range: Up to 100 feet (30.48 m) using 5800 Series wireless devices and 75 feet (22.86 m) from Z-Wave devices
  • Compliance: FCC Part 15

Honeywell 5800ZBRIDGE Compatible:


• 5883H
• 6160RF
• FA270RF
• FA570RF
• ZWSTAT
• READYGD3000
• READYGD5000
• READYGUARD-R
• L3000-SP
• L5000
• L5000-CN
• L5000-SIA
• L3000
• L3000-CN
• L3000-FR
• L3000-SIA
• LYNXR
• LYNXR-2
• LYNXR-2CN
• LYNXR-2FR
• LYNXR-2SIA
• LYNXR-EN
• LYNXR-ENSIA
• LYNXR-I
• LYNXR-ISIA
• LYNXR-ISP
• LYNXR-CN
• LYNXR-IFR
• L5100
• L5100-SIA
• L7000
• L5200
• L5200-CN
• L7000-CN
• L7000LA
• 6152RF
• 6162RF
• 5800
• Z-WAVE
• L5210
• L5210-CN
• L5210LA
• FA270RF
• FA570RF
• RGDRENSIA
• READYGD-R2
• READYGD-REN
• READYGD-RI
• READYGD5100
• READYGD5200
• READYGD7000
• 6150RF
• 6160RF
• 5883H
