2GIG-TAKE-KIT1 - 2GIG Hardwired Alarm System Conversion Kit
2GIG-TAKE-KIT1 Product Description:
The 2GIG Hardwire Conversion Kit (2GIG?TAKE?KIT1) provides DIYer's with an easy method for taking over a pre?wired security alarm system and converting the existing hardwired zones to wireless zones. To ensure optimal performance with the 2GIG control panel, the kit provides an ABS Plastic enclosure (UL 94: V?0) to protect the kit's components. The enclosure houses up to three (3) super switch takeover modules (2GIG?TAKE?345).
Each 2GIG?TAKE?KIT1 includes one (1) super switch takeover module which converts up to eight (8) hardwired sensors to 2GIG wireless zones. The kit also includes a power supply board with backup battery charging circuit, a grounded plug-in transformer, and an ABS plastic enclosure that includes a dedicated space for your backup battery (battery not included). The enclosure also houses up to two (2) additional Super Switch Takeover Modules, which increases your capacity to convert up to 24 wired sensors to wireless zones.
The super switch (2GIG-TAKE-345) cannot be used to monitor Carbon Monoxide (CO) or Fire detection zones and the Hardwire Conversion Kit is intended for indoor use only.
Product Features:
- 2GIG Super Switch Takeover Module which uses the patented technology for Wireless Takeover of an Alarm System (US Patent No. 8,638,218)
- Power Supply Board with a battery backup charging unit
- Grounded plug-in transformer with LED indicator for power supervision
- ABS Plastic wall-mounted enclosure meets UL 94: V-0 Flammability Standards
- ABS Plastic Enclosure (UL 94: V-0)
- 2GIG Super Switch Takeover Module (2GIG-TAKE-345)
- 12/24 VDC Power Supply Board
- 16.5 VAC 50 VA Grounded Plug-in Transformer
- Mounting Hardware
- 2GIG GC2 Panel Wireless Security System
- 12V, 1.4 AH Rechargeable Sealed Lead Acid Battery (or better)
- Backup Battery (required). One (1) 12 V, 1.4 AH Rechargeable Sealed Lead Acid Battery (or better) is required
- 2GIG-TAKE-345: Super Switch Takeover Module (optional). Add up to two (2) additional modules in the enclosure
- Linear H208: Lock Kit (optional). Recommended for locking the plastic wall-mount enclosure with a key for additional security
Kit Contents:
Requirements:
Add-On Components:
2GIG-TAKE-KIT1 Product Specifications:
- Enclosure Material and Certification: ABS Plastic UL 94: V-0
- Enclosure Dimensions: 11.5 x 12.5 x 4 in (29.2 x 31.8 x 10.2 cm)
- Wireless Signal Range: 350 ft. (160.7 m), open air, with Wireless Control Panel
- Code Outputs: For each of eight (8) serialized zones: Alarm, Restore; Fault; Low Battery
- Transmitter Frequency: 345.00 MHz (crystal controlled)
- Unique ID Codes: Over one (1) million different code combinations
- Supervisory Interval: 70 minutes
- Peak Field Strength: Typical 50m000 uV/m at 3m
- Sensor Dimensions (L x W x H): 3.54 x 2.56 x 1.13 in. (9.0 x 6.5 x 2.9 cm)
- Weight (including battery and bracket): 2.85 oz. (80.8 g)
- Housing Material: ABS Plastic
- Color: White
- Operating Temperature: -32°F to 120°F (0°C to +49°C)
- Relative Humidity: 5-95% Non-Condensing
- Operating Voltage: 9?16 volts DC, 50mA
- Certification: ETL, FCC Part 15, and Industry Canada
2GIG-TAKE-KIT1 Product Documents:
• Data Sheet for 2GIG-TAKE-KIT1 Hardwire Conversion Kit
• Installation Instructions for 2GIG-TAKE-KIT1 Hardwire Conversion Kit (in English)
• Installation Instructions for 2GIG-TAKE-KIT1 Hardwire Conversion Kit (in French)

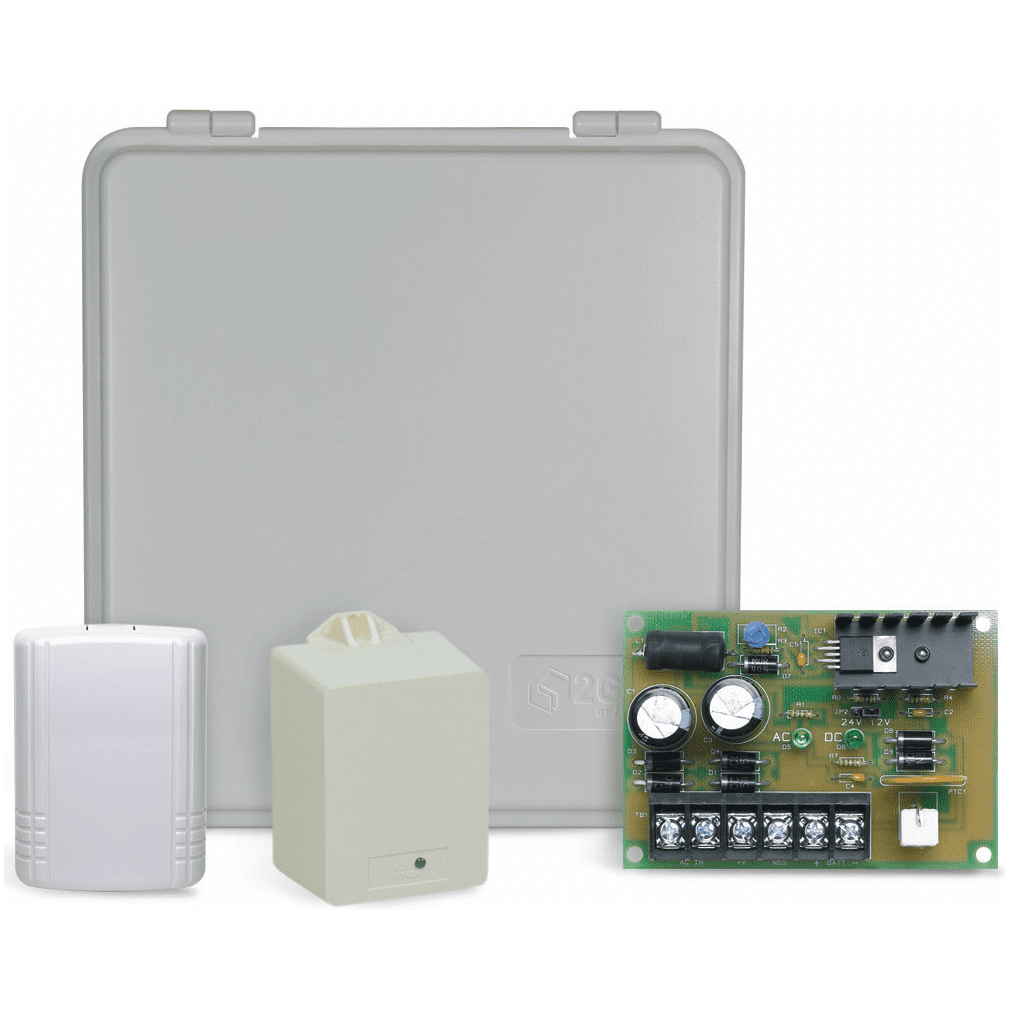

2GIG-TAKE-KIT1 Product Includes:
- (1) Super Switch Takeover Module (2GIG?TAKE?345) — (1) Plastic Bracket, (2) Phillips Head Screws for Plastic Bracket
- (1) 12/24 VDC Power Supply Board
- (1) 16.5VAC 50 VA Grounded Plug?in Transformer
- (1) ABS Plastic Wall-Mount Enclosure — (1) Removable Enclosure Door, (4) Drywall Anchors and Phillips Head Screws for mounting the enclosure, (1) Double?sided Adhesive Tape for Super Switch Plastic Bracket, (3) 2.5 inch (6.35 cm) Double?Stick Foam Strips for Power, (1) 2.5 inch (6.35 cm) Double?Stick Foam Strips for Plug?in Transformer Supply Board
